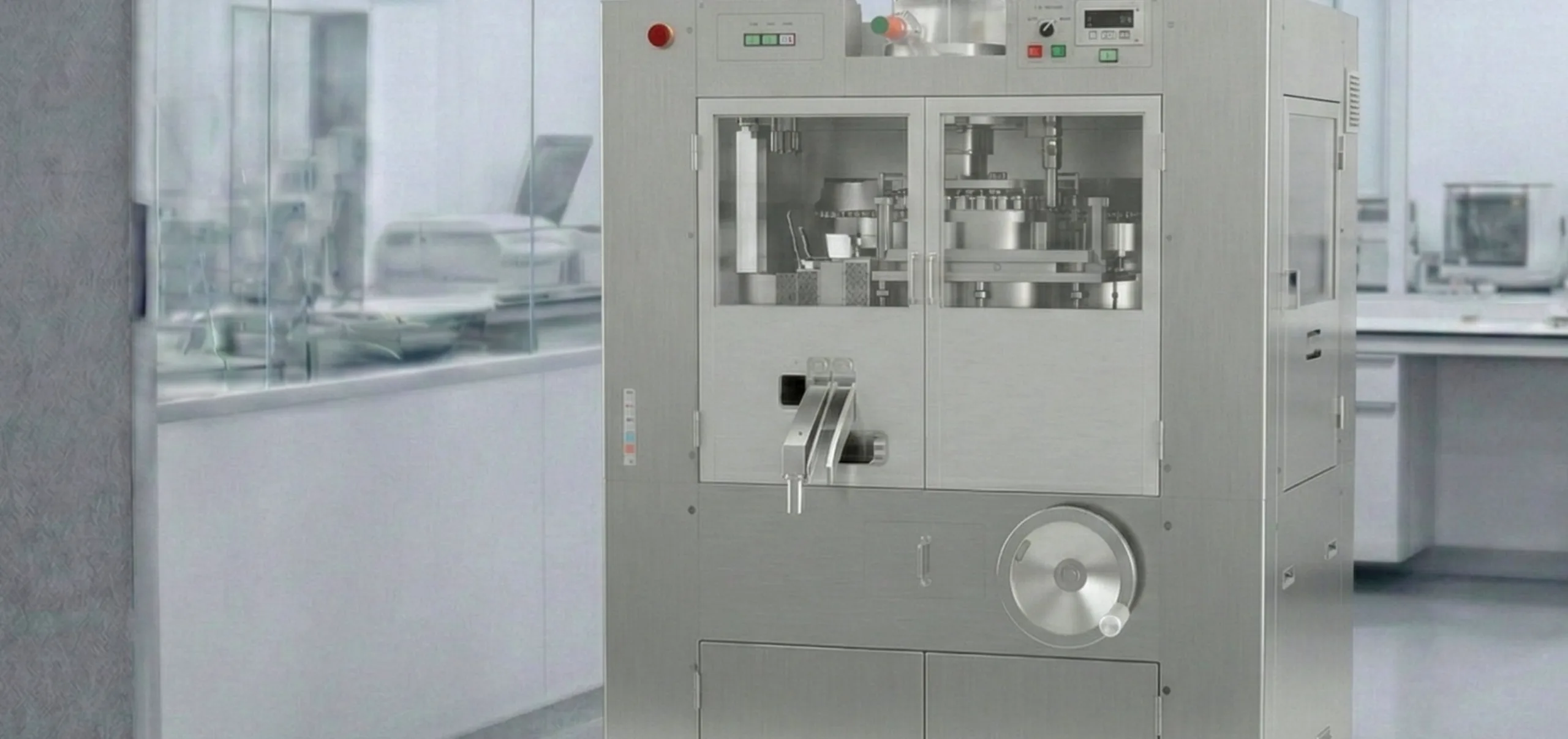

HT-HX51-LDU

The HT-HX51-LDU is a high-tonnage, double-sided rotary tablet press engineered for large-tablet production requiring substantial compression force. Designed within the HATA Easy Clean Press Series, the 51-station model delivers industrial-strength performance while maintaining high output rates.

306,000/hr Max Output

51 Stations

15 mTon Main Pressure

Rated for up to 15 metric tons of maximum compression force, the HT-HX51-LDU utilizes D-size tooling with a 1.5 inch die and 1.0 inch punch barrel to support large round or shaped tablets. With output ranging from 91,800 to 306,000 tablets per hour depending on operating speed, it balances high compression capability with production efficiency.

Equipped with HATA’s controlled feeding system and Easy Clean design features for faster changeover and cleaning, the HT-HX51-LDU provides a durable solution for manufacturers producing high-compression pharmaceutical tablets at scale.

Advanced Bi-Layer Compression

The HT-HX51-LDU is engineered for manufacturers producing large tablets that require high compression force without sacrificing output. As part of the HATA Easy Clean Press Series, this 51-station double-sided rotary tablet press is designed to deliver industrial-strength compression in demanding pharmaceutical production environments.
With a maximum compression force rating of 15 metric tons and continuous operating capability of 5 metric tons pre-compression and 10 metric tons main compression, the HT-HX51-LDU is built to handle large round or shaped tablets with stability and control. The press utilizes D-size tooling with a 1.5 inch die and 1.0 inch punch barrel, supporting tablet diameters up to 25 mm (1 inch) and fill depths up to 18 mm.
Operating at normal speeds between 15 and 50 RPM, the HT-HX51-LDU produces between 91,800 and 306,000 tablets per hour depending on compression force, tablet size, and granulation characteristics. A pitch circle diameter of 735 mm and a high-torque drive system provide stable power transmission under high-load conditions.
The patented HATA controlled feeding system supports uniform die filling, while Easy Clean design features improve accessibility for cleaning and changeover. Optional layer capability is available for manufacturers requiring two-layer tablet production. For operations demanding high compression strength and consistent output, the HT-HX51-LDU provides durable, high-tonnage performance in a production-ready platform.

Main Features and Benefits

Engineered to provide maximum flexibility and precision for bi-layer formulation development.

15 Metric Ton Maximum Compression Force

Provides high-tonnage capability for large tablets requiring substantial compression strength.

51-Station Double-Sided Rotary Configuration

Supports high-output production while maintaining compression stability.

Continuous 5 mTon Pre-Compression and 10 mTon Main Compression

Allows controlled consolidation prior to final compression for improved tablet integrity.

D-Size Tooling with 1.5” Die and 1.0” Punch Barrel

Accommodates large round or shaped tablets up to 25 mm in diameter.

Output up to 306,000 Tablets per Hour

Delivers high production capacity depending on operating speed and formulation characteristics.

Patented HATA Controlled Feeding System

Promotes uniform die filling for improved weight consistency at higher compression forces.

Easy Clean Press Design

Improves accessibility for cleaning and changeover to reduce downtime.

Optional Layer Capability

Allows modification for two layer tablet production when required.

High-Torque Drive with 735 mm Pitch Circle Diameter

Supports stable operation under heavy load conditions.

Industrial-Strength Frame Construction

Provides durability and structural stability for high-compression pharmaceutical production.

Technical Specifications

Mechanical Specifications
Model	HT-HX51-LDU
Tablet Press Type	Double-Sided Rotary
Number of Stations	51
Normal Operational Speed	15 – 50 RPM
Maximum Mechanical RPM	60 RPM
Maximum Compression Force	15 mTon (Metric Tons)
Continuous Operating Pre-Pressure	5 mTon
Continuous Operating Main Pressure	10 mTon
Pitch Circle Diameter	735 mm
Press Weight	5,730 kg (12,634 lbs.)
Press Dimensions (W x D x H)	122 cm x 122 cm x 191 cm (48” x 48” x 75”)

Tooling Specifications
Tooling Type	Standard “D” Tooling
Maximum Tablet Diameter (Round)	25 mm (1”)
Fill Depth Options	0–8 mm / 5–13 mm / 10–18 mm
Tablet Band Thickness	0 – 6 mm
Die Diameter	38.1 mm (1.500”)
Die Thickness	24.7 mm (0.9375”)
Punch Barrel Diameter	25.4 mm (1”)
Upper Punch Length	133.35 mm (5.250”)
Lower Punch Length	133.35 mm (5.250”)
Tablets per Minute	1,530 – 5,100
Tablets per Hour	91,800 – 306,000*
Rated Output Note	Output varies depending on compression force, tablet size, and granulation characteristics.

Electrical Specifications
Power Consumption	12.5 kW
Normal Operational RPM	15 – 50 RPM
Maximum Mechanical RPM	60 RPM
Drive System	High-Torque Rotary Drive System
Feeding System	Patented HATA Controlled Feeding System

Controls & Safety Specifications
Emergency Stop	Dual-Sided Emergency Stop Buttons
Overload Protection	Overload Spring Access Lid
Tablet Rejection System	Dedicated A & B Side Rejection Tubes
Tablet Discharge	Double-Sided Take-Off Chutes
Vacuum Ports	Dual Ports for Dust Control
Easy Clean Design	Accessible Doors for Hopper & Feeder Maintenance

Ready for High-Compression Tablet Production?

If your operation requires large-tablet production with substantial compression force and consistent output, the HT-HX51-LDU delivers industrial-strength performance within a high-speed rotary platform. Its 15 metric ton capacity and controlled feeding system are engineered to handle demanding formulations without sacrificing productivity. Whether you are producing large round tablets or shaped formats that require higher compression, the HT-HX51-LDU provides the durability and stability needed for continuous manufacturing. Contact Elizabeth to review your tablet specifications, compression requirements, and production targets. Our team will help determine if the HT-HX51-LDU is the right fit for your high-tonnage manufacturing environment.

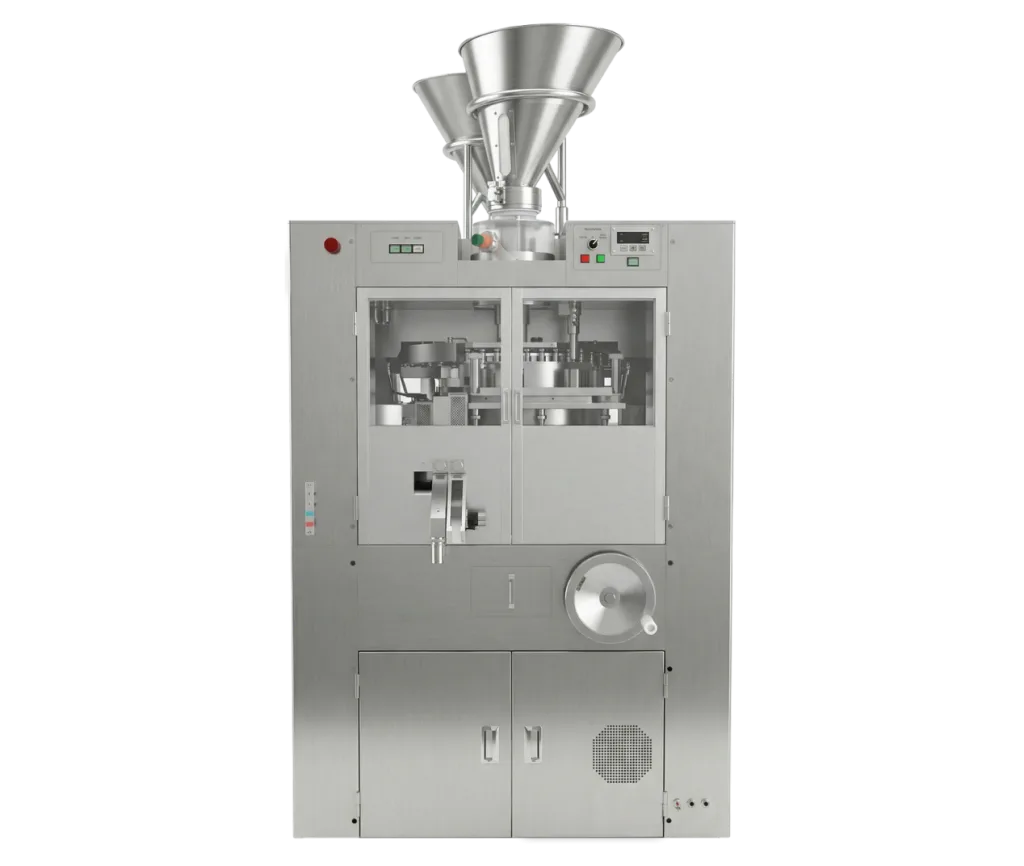

Hata HT-HX51-LDU Tablet Press
