EP-200

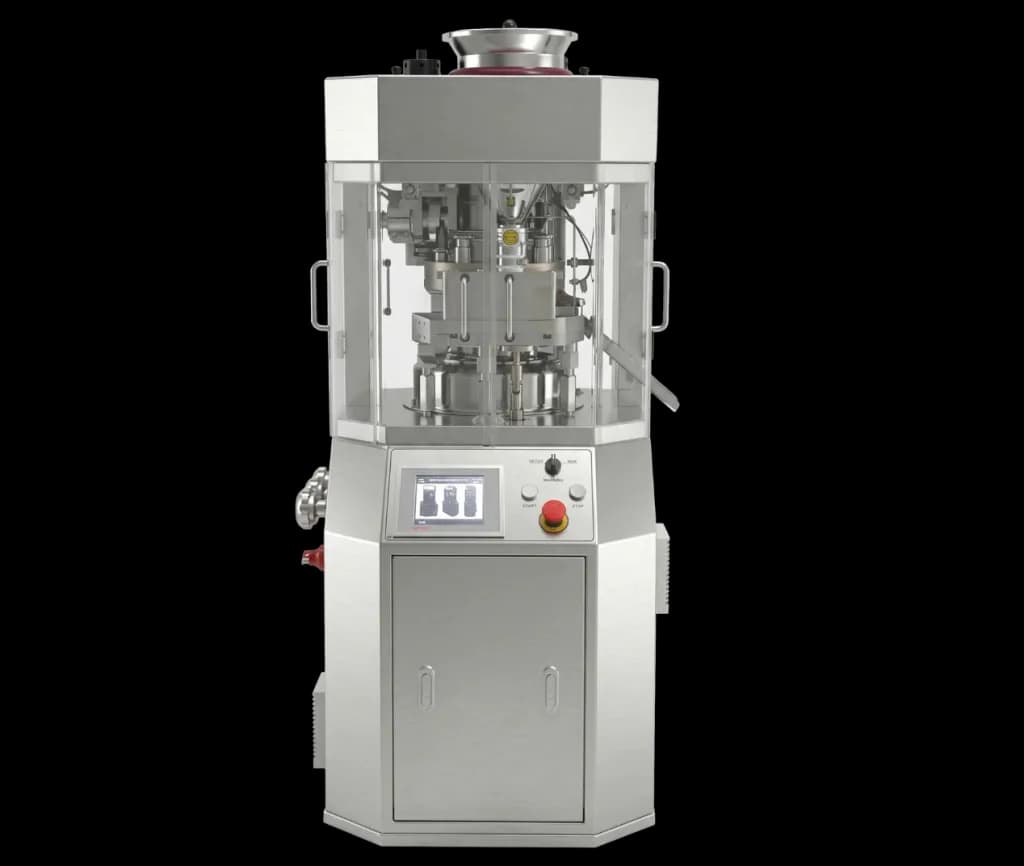

The Elizabeth EP-200 is a compact, R&D rotary tablet press designed for formulation development, small-batch production, and pilot-scale manufacturing. Built with GMP-compliant materials and separated tableting and mechanical zones, the EP-200 delivers controlled, repeatable compression in a space-efficient footprint.

18,000/hr Max Output

8, 10, or 7x7 Stations

5 Ton Main Pressure

Available in D, B, or combination multi-tooling configurations, the EP-200 supports output ranging from 4,200 to 18,000 tablets per hour depending on tooling selection. Equal-sized pre-compression and main compression rollers, each rated at 5 tons, increase dwell time and improve tablet consistency.

Equipped with a touch screen MMI, load cells for compression monitoring, double paddle force feeder with AC variable frequency drive, and direct turret drive through a high-torque gearbox, the EP-200 provides precise control for development environments where accuracy and flexibility are critical.

Advanced Bi-Layer Compression

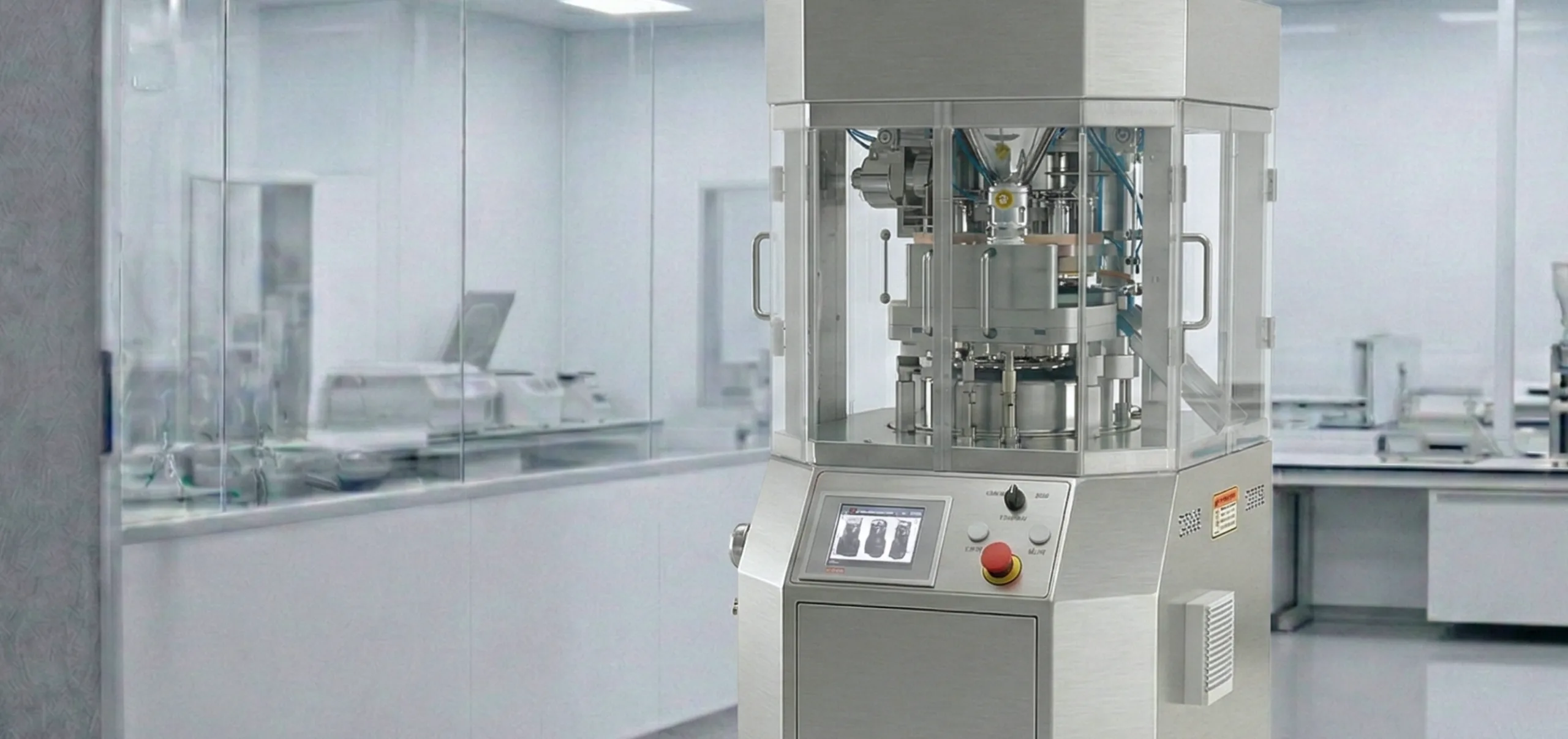

The Elizabeth EP-200 is designed for formulation development, small-batch production, and pilot-scale tablet manufacturing. As a compact rotary tablet press, it provides the control and repeatability required in research, scale-up, and specialty production environments while maintaining GMP-compliant construction.
With up to 10 stations depending on tooling configuration and output ranging from 4,200 to 18,000 tablets per hour, the EP-200 allows manufacturers to move from development to limited production without changing equipment platforms. The turret can be configured for D, B, or combination multi-tooling, giving flexibility across tablet sizes and compression requirements.
The EP-200 features equal-sized pre-compression and main compression rollers rated at 5 tons each, increasing dwell time and improving tablet density and consistency. A direct-drive turret system with high-torque reduction gearbox minimizes power loss while supporting stable compression. The reinforced steel plate frame reduces vibration during higher compression forces, which is critical in development environments.
Equipped with a touch screen MMI, turret and feeder RPM control, load cells for monitoring pre and main compression, and optional ejection force monitoring, the EP-200 provides real-time process visibility. The double paddle force feeder with AC variable frequency drive ensures uniform die filling and improved weight control.
For organizations focused on R&D, product development, clinical trial batches, or specialty production runs, the EP-200 delivers controlled performance in a compact, development-focused platform.

Main Features and Benefits

Engineered to provide maximum flexibility and precision for bi-layer formulation development.

Compact R&D Rotary Tablet Press Design

Supports formulation development, pilot-scale production, and small-batch manufacturing within a space-efficient footprint.

Up to 10 Stations with Multi-Tooling Options

Allows configurations in D, B, or combination D & B tooling to accommodate a range of tablet sizes and development needs.

Equal-Sized Pre and Main Compression Rollers (5 Tons Each)

Increases dwell time to improve tablet density and compression consistency.

Direct Turret Drive with High-Torque Reduction Gearbox

Minimizes power loss while delivering stable, controlled compression performance.

GMP-Compliant Construction and Surface Treatment

Supports cleanability and regulatory requirements for pharmaceutical and nutraceutical environments.

Separated Tableting and Mechanical Zones

Reduces cross-contamination risk and improves maintenance accessibility.

Double Paddle Force Feeder with AC Variable Frequency Drive

Promotes uniform die filling and improved weight control across formulations.

Touch Screen MMI with Turret and Feeder RPM Control

Provides intuitive control over key process parameters from a centralized interface.

Load Cells for Pre and Main Compression Monitoring

Enables real-time compression force feedback to support development and validation work.

Upper Punch Overload Protection System

Helps prevent tooling damage during compression adjustments or process deviations.

Technical Specifications

Mechanical Specifications
Model	EP-200
Type	Rotary Tablet Press (R&D / Pilot Scale)
Number of Stations	8 (D Tooling) / 10 (B Tooling) / 7x7 (B/D Combination)
Turret Speed	10 – 30 RPM
Mechanical Maximum Operating Pressure	5 Tons
Pre-Compression Rollers	5 Tons Capacity
Main Compression Rollers	5 Tons Capacity
Machine Frame	Reinforced Steel Plate Frame
Overall Dimensions	H 1252 x W 558 x D 850 mm (Height without hopper)
Height with Hopper	1338 mm
Net Weight	750 kg

Tooling Specifications
Tooling Options	D (TSM/IPT) / B (TSM/IPT) / Combination B-D
Output (D Tooling)	4,800 – 14,400 tablets/hour
Output (B Tooling)	6,000 – 18,000 tablets/hour
Output (B/D Combination)	4,200 – 12,600 tablets/hour
Maximum Tablet Diameter (D)	22 mm
Maximum Tablet Diameter (B)	16 mm
Maximum Depth of Fill (D)	18 mm
Maximum Depth of Fill (B)	17 mm
Upper Punch Penetration	4 – 6 mm
Diameter of Die (D/B)	38.10 mm (D) / 30.1625 mm (B)
Length of Die (D/B)	24 mm (D) / 22 mm (B)
Diameter of Upper Punch (D/B)	25.35 mm (D) / 19 mm (B)
Length of Punch	133.35 mm
Diameter of Lower Punch	25.35 mm (D) / 19 mm (B)

Electrical Specifications
Main Power	3 HP, 3 Phase, 220V / 60Hz
Drive System	Direct Turret Drive with High-Torque Reduction Gearbox
Force Feeder	Double Paddle Design (Reversible)
Feeder Drive	AC Variable Frequency Drive

Controls & Safety Specifications
Control Interface	Touch Screen MMI
Turret RPM Control	Adjustable via Interface
Feeder RPM Control	Adjustable via Interface
Compression Monitoring	Load Cells for Pre & Main Pressure (Standard)
Ejection Pressure Monitoring	Optional Load Cell
Tablet Counter	5-Digit Integrated Counter
Emergency Stop	Integrated Push Button
Upper Punch Overload System	Tooling Protection Feature

Ready to Support Your Development Work?

If you are developing new formulations, running clinical trial batches, or validating processes before full-scale production, the EP-200 provides the control and flexibility required at the R&D and pilot stage. Its multi-tooling capability, dual compression rollers, and real-time load monitoring allow you to refine tablet parameters with confidence.
Whether you are scaling up from benchtop development or preparing for commercial transfer, the EP-200 helps bridge the gap between research and production.
Contact Elizabeth to discuss your formulation requirements, tooling configuration, and output goals. Our team will help determine if the EP-200 is the right fit for your development and pilot manufacturing needs.
