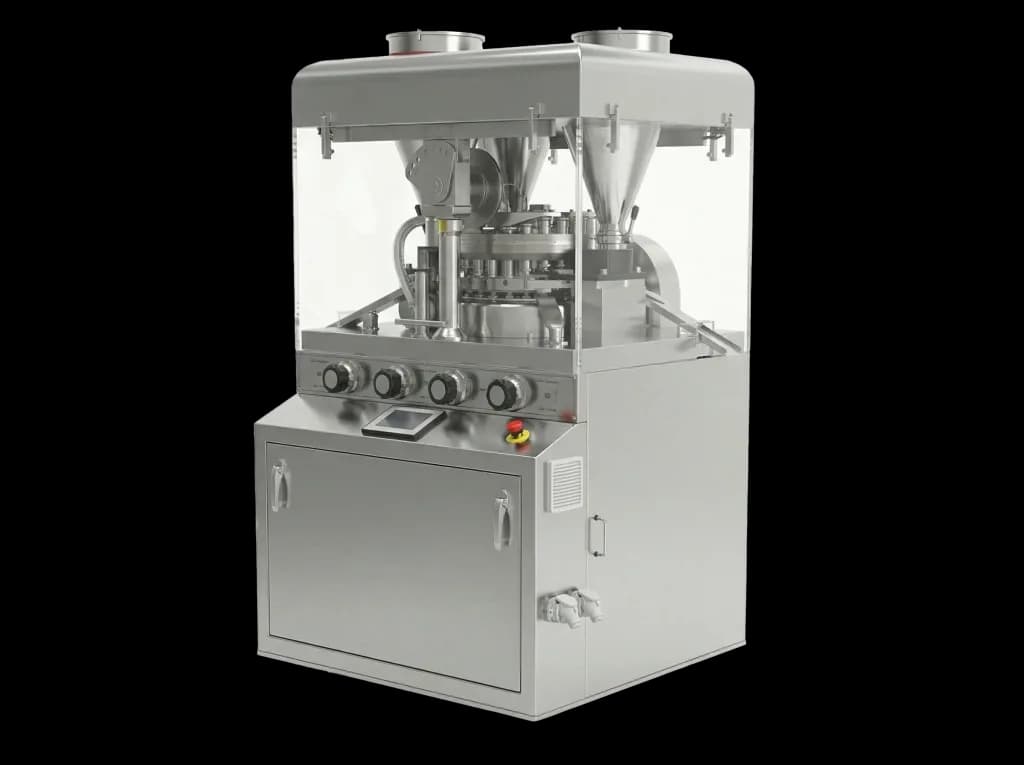

ECO IV

The Elizabeth ECO IV is a double-sided rotary tablet press engineered for medium- to high-volume production across pharmaceutical, nutraceutical, confectionery, and industrial applications.

>250,000/hr Max Output

27, 35, or 45 Stations

6.5 Ton Main Pressure

Designed for scalable output and consistent performance, it supports multiple tooling configurations and delivers strong throughput within a compact, production-ready footprint. With up to 45 stations and maximum output exceeding 250,000 tablets per hour depending on tooling selection, the ECO IV provides flexibility for manufacturers running IPT-D, IPT-B, or IPT-BB tooling.

Equipped with a PLC-based control system and color touch screen HMI, the ECO IV allows operators to manage turret speed, feeder speed, batch counts, and production data directly from the front of the machine. Combined with a double paddle force feeder, enclosed compression zone, and integrated safety interlocks, the ECO IV offers controlled, high-output tablet production for growing operations.

Scalable Output & Control

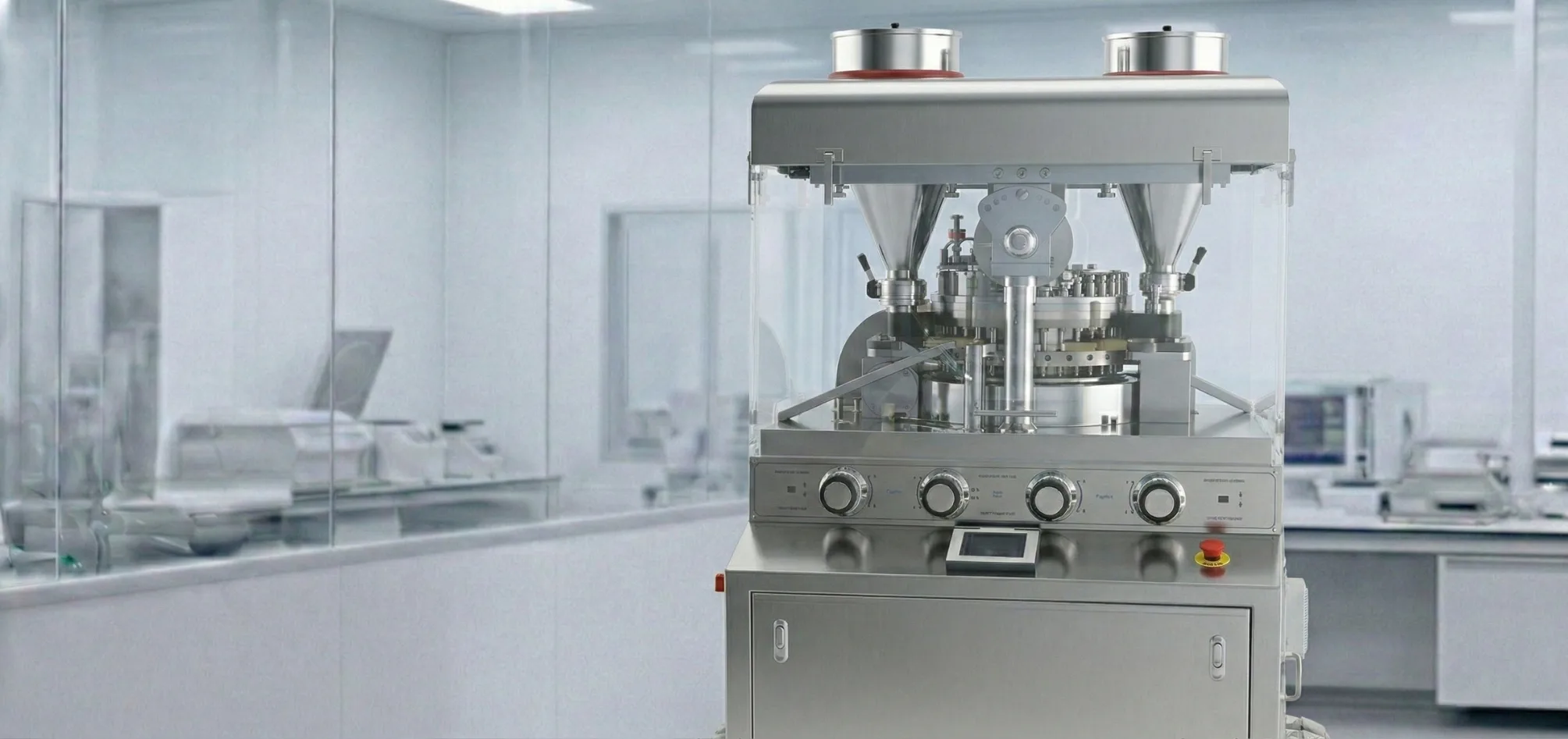

The Elizabeth ECO IV is designed for manufacturers who require higher output, process control, and flexibility in medium- to high-volume tablet production. As a double-sided rotary tablet press, it increases production capacity while maintaining precise control over compression parameters, making it suitable for pharmaceutical, nutraceutical, confectionery, and select industrial applications.

The double rotary configuration allows the ECO IV to operate with up to 45 stations, depending on tooling selection, and achieve output exceeding 250,000 tablets per hour. This makes it well suited for companies scaling production or consolidating multiple lower-capacity presses into a single, higher-efficiency platform. Tooling options including IPT-D, IPT-B, and IPT-BB provide flexibility across a range of tablet sizes and formats.

The ECO IV integrates a PLC-based control system with a front-mounted color touch screen HMI, allowing operators to manage turret speed, feeder speed, synchronization ratios, batch counts, and production data directly from the control panel. Recipe storage, alarm history, production tracking, and configurable speed limits support repeatability and controlled manufacturing environments.

Built with an enclosed compression zone isolated from the drive compartment, double paddle force feeder, centralized automatic lubrication system, and door interlock safety controls, the ECO IV is engineered for consistent operation and straightforward maintenance. It provides a practical solution for manufacturers who need dependable throughput, modern control capability, and scalable production performance.

Main Features and Benefits

Double-Sided Rotary Configuration

Increases production capacity by compressing tablets on both sides of the turret for higher overall output.

Up to 45 Stations

Supports multiple tooling configurations to match production volume and tablet size requirements.

High Output Capacity

Delivers production exceeding 250,000 tablets per hour depending on tooling and setup.

IPT-D, IPT-B, and IPT-BB Compatibility

Provides flexibility to run a wide range of tablet diameters and formats.

PLC-Controlled Color Touch Screen HMI

Allows operators to control turret speed, feeder speed, synchronization rations, and batch settings from a centralized interface.

Recipe Management & Production Tracking

Enables storage of process parameters and access to production records for repeatability and documentation.

Double Paddle Force Feeder

Improves powder flow and die filling, especially for difficult or poor-flowing formulations.

Enclosed Compression Zone

Isolates the compression area from the drive compartment to support cleaner operation and improved process control.

Central Automatic Lubrication System

Ensures consistent lubrication of critical components to reduce wear and simplify maintenance.

Technical Specifications

Mechanical Specifications
Model	ECO IV
Tablet Press Type	Double Rotary
Number of Stations	27 / 35 / 45
Turret Speed	10–48 RPM
Main Compression Pressure (Max.)	6.5 Ton (Mechanical Max.)
Upper Punch Penetration	1.5–4.5 mm
Machine Footprint	1,030 mm x 1,030 mm
Machine Height (Without Hopper)	1,650 mm
Machine Height (With Hopper)	1,800 mm
Net Weight	1,700 kg
Gross Weight	2,050 kg

Electrical Specifications
Main Motor	10 HP, 1440 RPM
Main Motor Voltage	220 V, 3 Phase, 60 Hz
Main Motor Inverter	10 HP (7.5 kW)
Feeder Type	Gravity Feeder (Standard)
Mechanical Force Feeder	Standard
Force Feeder Motor	0.25 HP, 230 V, 3 Phase, 50 Hz

Tooling Specifications
Tooling Options	IPT-D / IPT-B / IPT-BB
Maximum Tablet Output (27 D Stations)	155,520 tablets/hour*
Maximum Tablet Output (35 B Stations)	201,600 tablets/hour*
Maximum Tablet Output (45 BB Stations)	259,200 tablets/hour*
Maximum Tablet Diameter (D Tooling)	22 mm
Maximum Tablet Diameter (B Tooling)	16 mm
Maximum Tablet Diameter (BB Tooling)	13 mm
Maximum Tablet Thickness	8 mm
Maximum Filling Depth	18 mm (D) / 17 mm (B & BB)

Controls & Safety Specifications
Control System	PLC-Based Control System
Human Machine Interface (HMI)	Color Touch Screen MMI
Turret RPM Control	Adjustable via Touchscreen
Feeder RPM Control	Adjustable via Touchscreen
Tablet Counter	Integrated with HMI
Parameter Control	All tablet parameters controlled from front of machine
Compression Zone	Fully enclosed and isolated from drive compartment
Machine Base	Fully enclosed with removable covers for motor & drive access
Safety Interlocks	Guarded access with interlock protection

*Rated outputs may vary depending on product characteristics, tablet size, depth of fill, and operating conditions.

Ready to Increase Production Capacity?

If you are scaling tablet production or upgrading from a lower-capacity press, the ECO IV offers the output, control, and flexibility required for modern manufacturing environments. With double-sided compression, PLC-based controls, and multiple tooling configurations, it is built to support consistent, repeatable production across a wide range of applications.

Contact Elizabeth to discuss your tablet specifications, production targets, and facility requirements. Our team will help determine whether the ECO IV is the right fit for your operation and timeline.
