Combo Deduster + Metal Detector SS 30
Optimum Dedusting and Deburring.

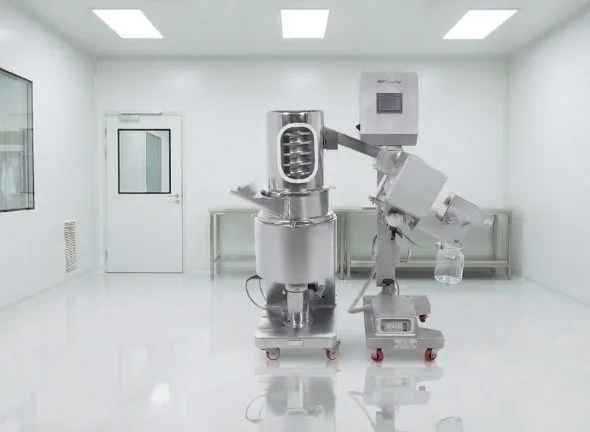

Ensure every tablet leaving your press is clean, compliant, and free of contaminants. The SS 30 integrates a high-efficiency vertical deduster with precise digital metal detection in a single, space-saving footprint.
Advanced Integration. Easy Operation.

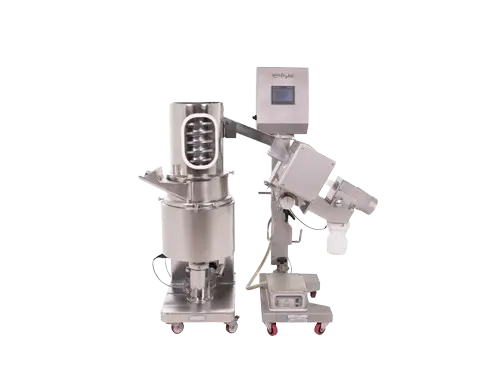

The Combo Deduster + Metal Detector SS 30 is designed for maximum efficiency. It features a bottom-to-top vertical dedusting operation integrated directly with a digital metal detector. Control settings for both units conveniently from the metal detector’s swiveling display.
Designed to ensure ease of cleaning, the entire deduster assembly can be dismantled and assembled within minutes without the need for any tools. Dust collection is safely managed through a separately provided dust chute
Maintains a comfortable and compliant workspace.
- Produces no outside vibrations.
- Operates with very low audio noise.
- Dust collection via separate dust chute.
- Tool-less dismantling for rapid cleaning.
Adapts seamlessly to your production line.
- Inlet can be rotated 360°.
- Compatible with Right or Left compression outlets.
- Up/Down sliding movement easily adjustable using a gas strut.
- Total travel length of 5 meters.

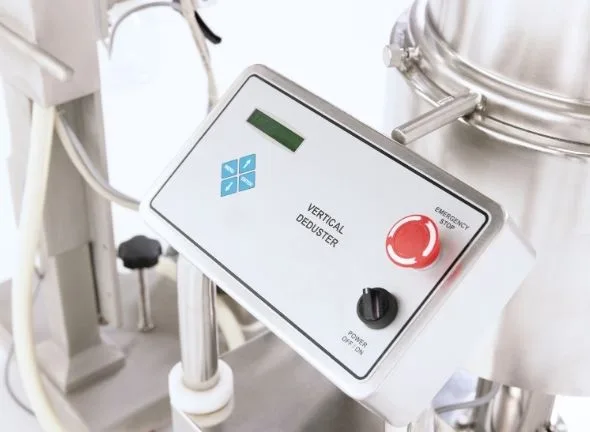

Total command from a single interface.
- Settings for both units controlled from the Metal Detector.
- Features a convenient swiveling display.
- Frequency and Voltage (Power) control for optimum deburring.
- Ensures effective multiple tumbling.
Machine Specifications & Capacity
Review the technical dimensions and high-volume output capabilities of the SS 30 unit.
Technical Specifications
The SS 30 is built with premium materials for durability and compliance, featuring easily adjustable heights to integrate with your existing tablet press infrastructure.
| Inlet / Outlet Height | 800 mm to 1000 mm |
|---|---|
| Overall Dimensions | 1600 mm (H) × 900 mm (W) × 500 mm (L) |
| Material (Contact Parts) | SS 316 L |
| Material (Non-Contact) | SS 304 |
| Vacuum Capacity | 100 CFM |
| Weight | 200 kg approx. |
| Power Supply | 110V AC, 60 Hz |
Deduster Output Capacity
| Round Tablet 5mm (Dia) × 2mm | 500,000 Tablets/hour |
|---|---|
| Round Tablet 8mm (Dia) × 3mm | 500,000 Tablets/hour |
| Round Tablet 10mm (Dia) × 4mm | 400,000 Tablets/hour |
| Round Tablet 12mm (Dia) × 5mm | 350,000 Tablets/hour |
| Round Tablet 16mm (Dia) × 4mm | 200,000 Tablets/hour |
| Round Tablet 25mm (Dia) × 7mm | 80,000 Tablets/hour |
